Electric upsetters
ER25/OM
Technical data shown are non-binding and subject to change without notice
| Upset diameter | 30/80 mm |
|---|---|
| Upset bar length | 1500 mm |
| Pusher stroke / upsetting length | 600 mm |
| Stroke feedback | 250 mm |
| Power supply | 380 V – 3 phases |
| Power transformer | 250 kW |

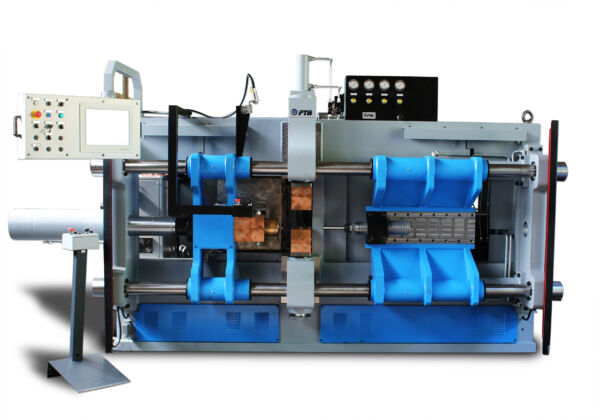

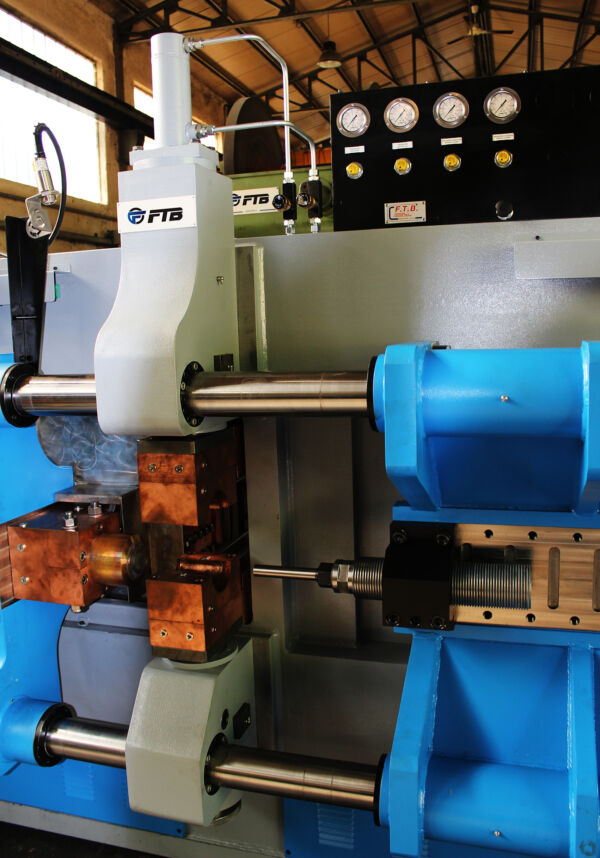

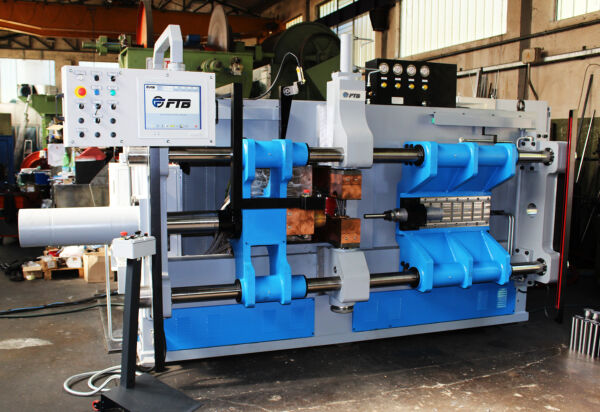

Hydraulically-driven horizontal upsetter.
This hydraulically-driven horizontal upsetter can machine rather large workpieces. In fact, it can machine workpieces with upset diameters of up to 80 mm for bars up to 1.5 metres long!
Built with an inverter (static square-wave or three-phase partial sine-wave converter), its large size makes it particularly suitable for machining valves for ship engines (usually made of inconel) or for manufacturing large bolts for the automotive "earth-moving traction" sector (e.g. "hubs" for truck wheels, lifting gearboxes in cranes) or even for making bridge "linkages."
Like every FTB upsetter, the ER25/OM is supplied with manual, semi-automatic, and automatic operation or complete with loading system.
